LIVEMIX MIX-16

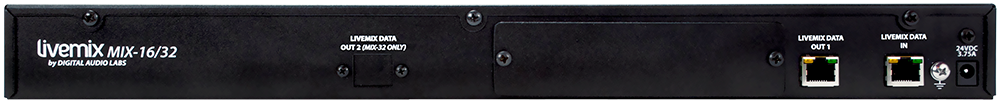

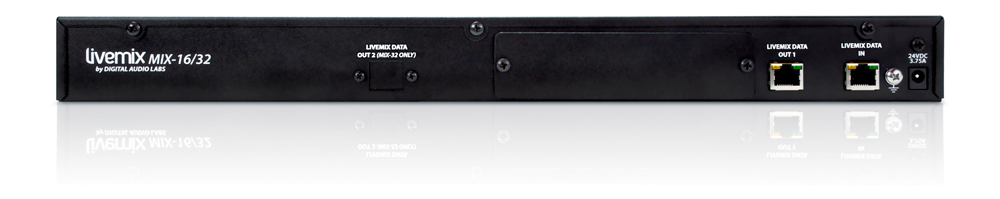

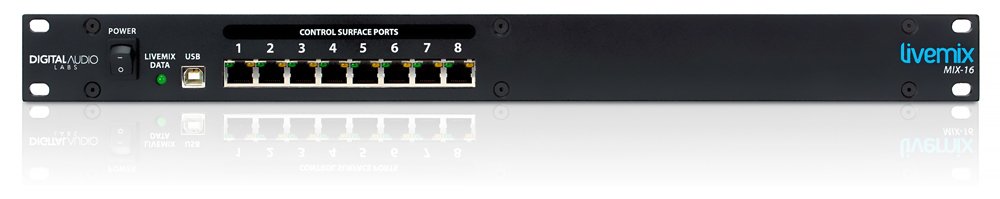

The MIX-16 is the central mixer for the Livemix personal monitoring system. The MIX-16 supplies mix streams as well as power to each of the connected personal mixers. The MIX-16 will generally be placed near the personal mixers, likely in a rack near the stage. The MIX-16 receives input data over a network cable, either from the AD-24 (shielded) or from a Dante network via the LM-DANTE-EXP2 Dante card. Each port on the MIX-16 supports two discrete mixes. Connect a single CS-DUO or up to two CS-SOLOs to each port with standard network cable. Maximum combined CAT5e cable (shielded or unshielded) distance is 100 meters.
