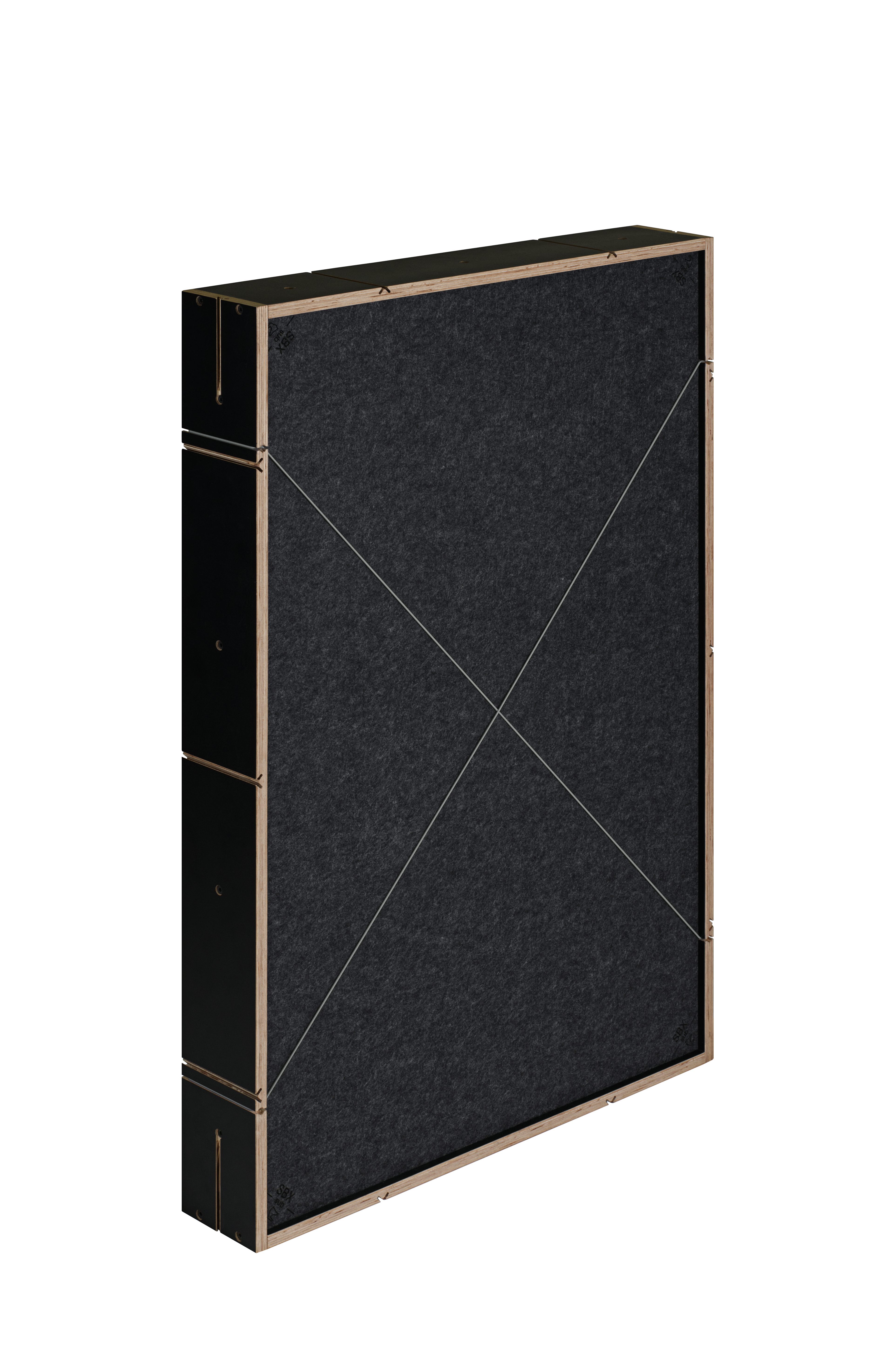

Sessiondesk SBX sub Acoustic Panel - 90s Black

The SBX sub extends the performance of the SessionbloX system into the low-frequency spectrum, targeting the most difficult range to control in studio environments. Engineered as a modular bass trap, the sub integrates seamlessly with core panels to balance rooms where low-end build-up and standing waves are most challenging.

Mastering the placement of the SBX sub panel in a room is essential for achieving the most efficient low-frequency control. The panel must be positioned in high-pressure zones, such as walls and corners where modal energy naturally accumulates.

The SBX sub is a directional membrane absorber: its composite membrane is located on the back of the unit indicated by the wave, and must face a rigid boundary to function optimally. When placed directly against a wall or corner, the SBX sub’s membrane resonates most strongly in the 70–80 Hz region.

When installed 20 cm / 8 in away from a rigid boundary, the effective air gap increases and the tuning shifts lower, making the panel most effective around 40–45 Hz. When placed 40 cm / 16 in away, the operating frequency drops to approximately 30–35 Hz.

For effective low-frequency control, the SBX sub should be placed within 60-80 cm / 24-31 in of a rigid boundary. Beyond 100 cm / 40 in, its tuning falls below the useful audible bass range and efficiency is significantly reduced.

Features:

- Features:
- Low-frequency absorption panel
- Modular freestanding design integrates with SBX using the X-Connector system
- Tool-free assembly for quick setup and reconfiguration Improves room accuracy by reducing bass build-up, standing waves, and resonances
- Birch plywood frame in Sessiondesk’s 90s Black finish
- Made with recycled PET and sustainable wood fibers
- Product dimensions: 108x72x12 cm
