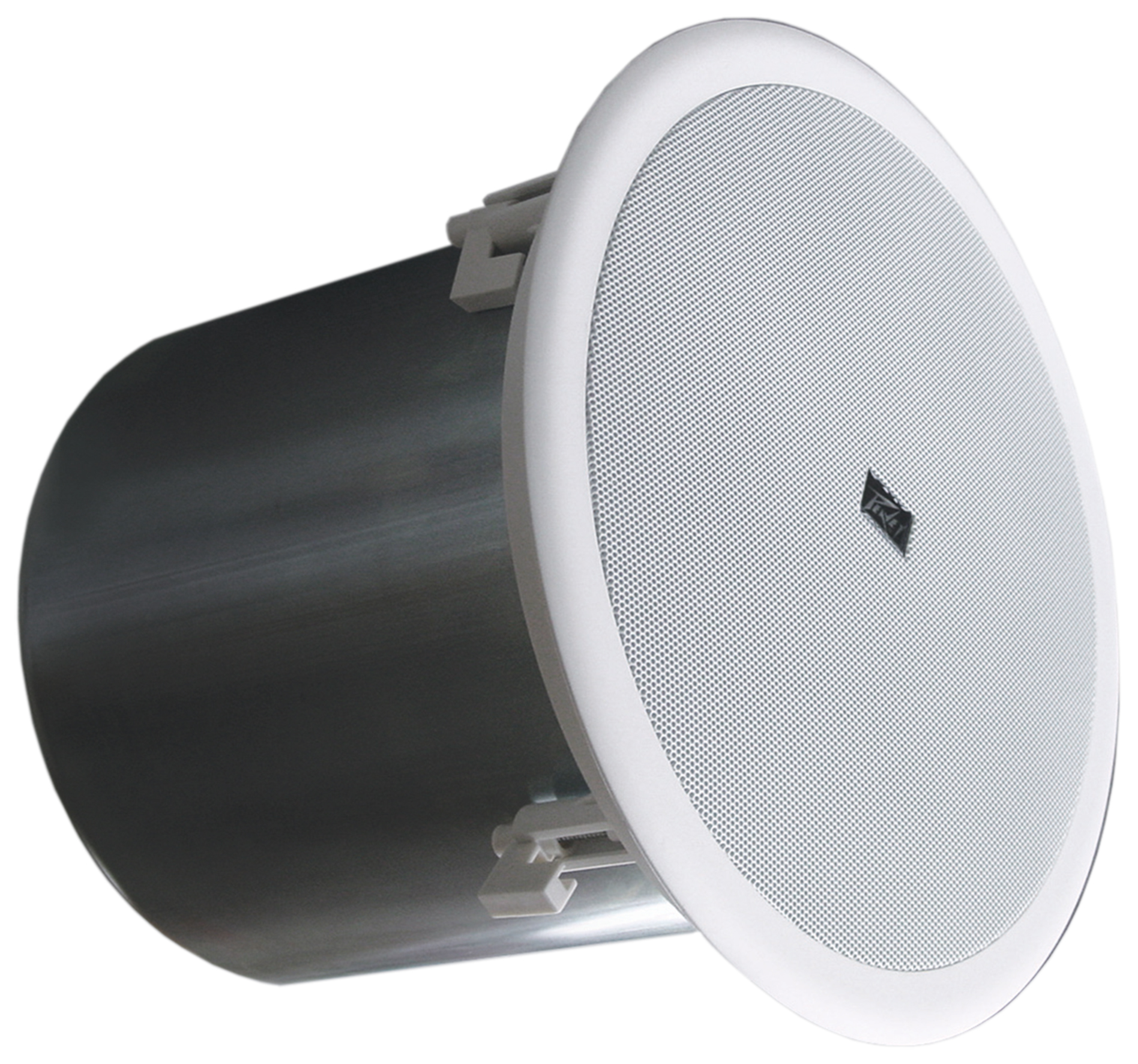

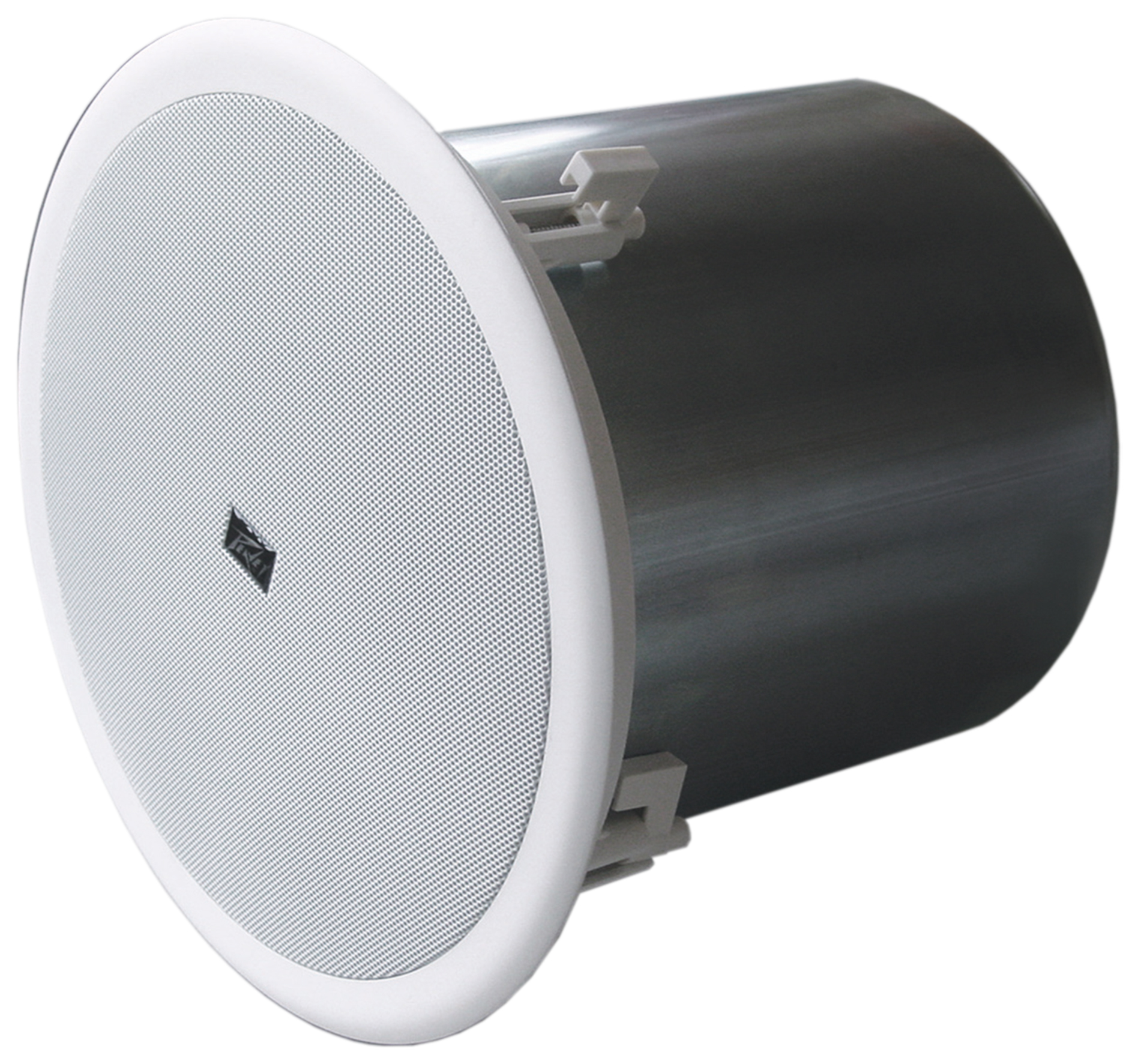

Peavey PHR 860S White

Designed to provide high performance in a very compact footprint, the Architectural Acoustics® PHR series in-ceiling mounting enclosures appeal to both system designers and architects. PHR in-ceiling mount enclosures are ideal for high-intelligibility voice, music and signal reproduction in commercial, industrial and institutional applications. A tap selector switch allows for easy system tuning and configuration for 70 or 100V distributed systems. A full selection of taps up to 60 Watts (model dependent) and an 8 Ohms transformer bypass setting are included for maximum system versatility. The UL-compliant enclosure is constructed of high-impact, injection-molded plastic and includes a press-fit grille design that blends well with contemporary architecture.

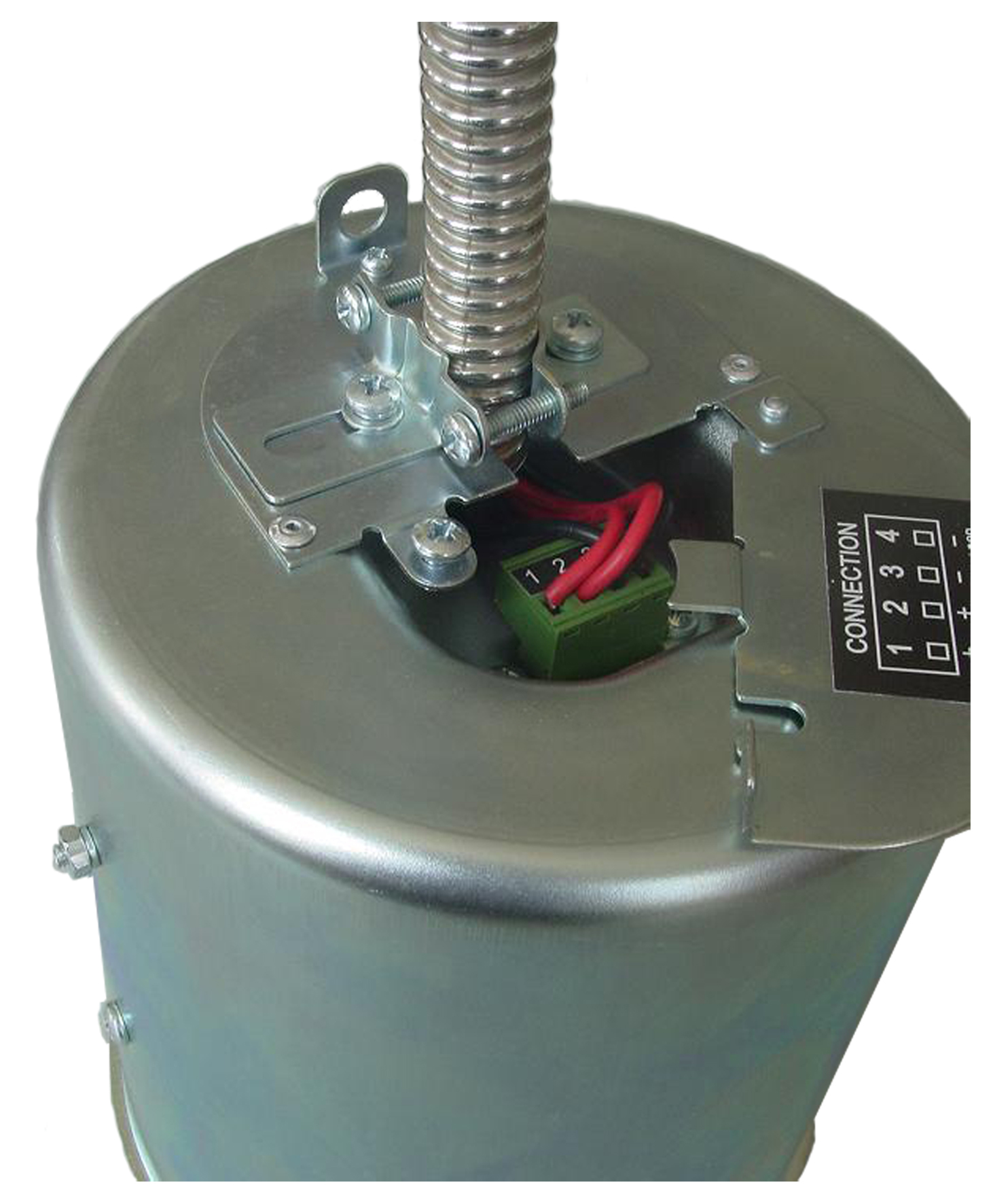

PHR series enclosures are housed in steel backing cans and include two color-coded, screw-locked flying leads in a wiring chamber to allow for easy system wiring and "daisy chain" wiring to additional PHR enclosures.

Features PHR 860S

• Frequency Response: 55 Hz to 100 Hz, ± 6 dB, 45 Hz @ -10 dB
• Power Handling: Thru Mode 100 Watts
• Transformer Taps 60W, 30W, 15W, 7.5W, 3.75W (70V), 100V capable
• Sensitivity: 89 dB SPL, 1m, 1W (8 Ω nominal inThru Mode)

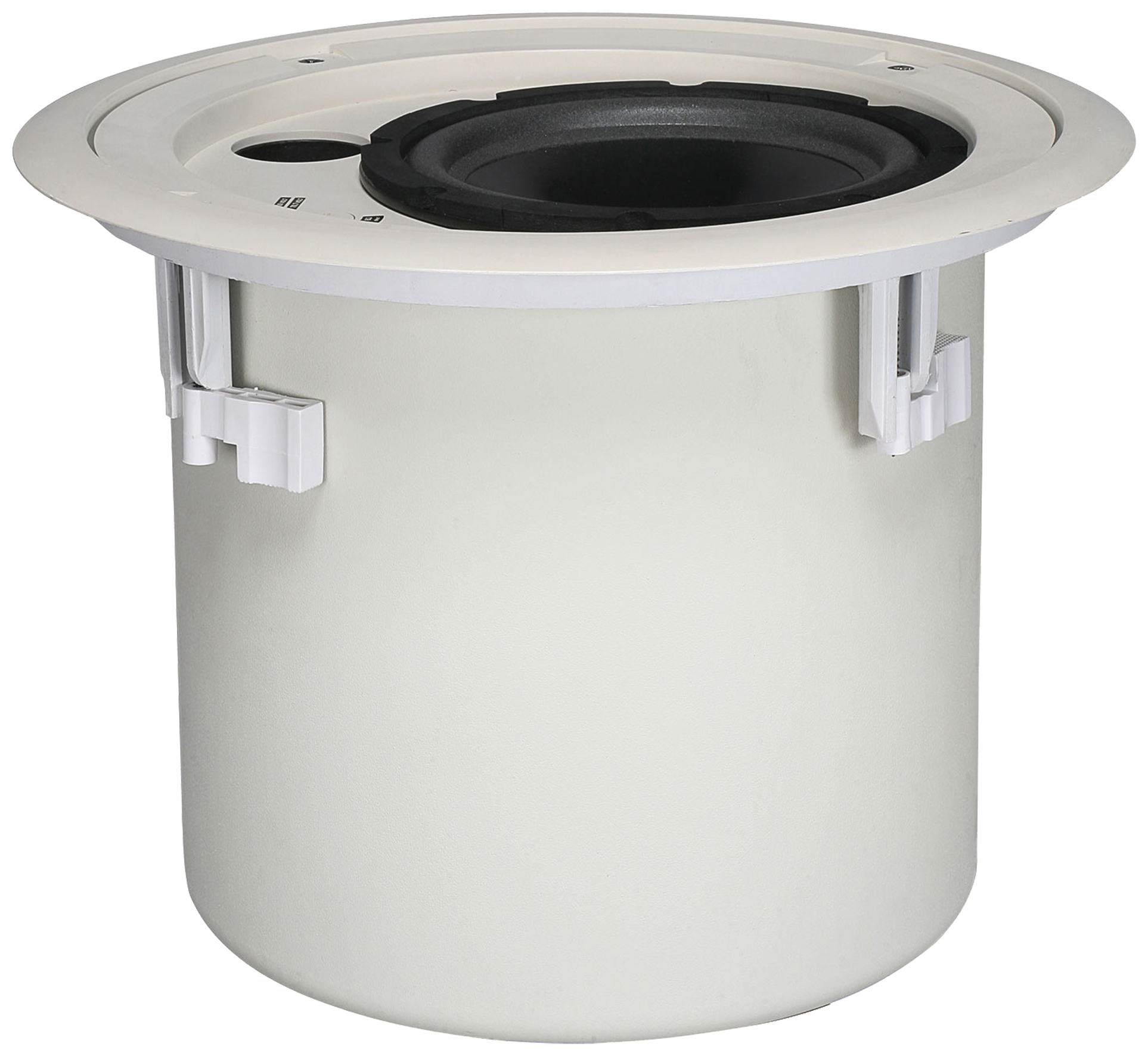

• 8" woofer with 1.2" VC, PP cone and rubber surround
• Crossover Frequency: 120 Hz
• Crossover Slopes: 18 dB/oct
• Outside Dimensions: 15.75" x 12.75" (Outermost Diameter x Overall Depth)
• Cutout Diameter: 14"
• Enclosure: High-impact polystyrene with removable locking installation arms; back can of formed steel; conduit-capable clamp for wiring; wiring chamber with screw lock; perforated metal grille with inner fabric liner for ‘blackout.'
• C-shaped backing plate support included
• UL compliant
• Quantity per pack - one pair

Technical Specifications

• Speaker Configuration: Ceiling Speaker Subwoofer
• Speaker Type: Non-Powered
• Power RMS: 100 W @ 8 Ω - Selectable taps - 60 , 15 , 30 , 7.5 , or 3.75 W @ 70/100V
• Power Program: 200 W
• Power Peak: 400 W
• Nominal Impedance: 8 Ω
• Sensitivity (1W/1m): 89 dB
• Speaker Frequency Response: 55 Hz - 100 kHz (±6 dB)
• LF Driver: 8" Woofer
• Enclosure Material: Polystyrene & Steel Back Can
• Net Weight: 14.5 lbs (6.58 kg)
• Product Height: 12.75" (323.9 mm)
• Product Width: max. Ø 12.44" (316 mm)
• SKU: 00597720
