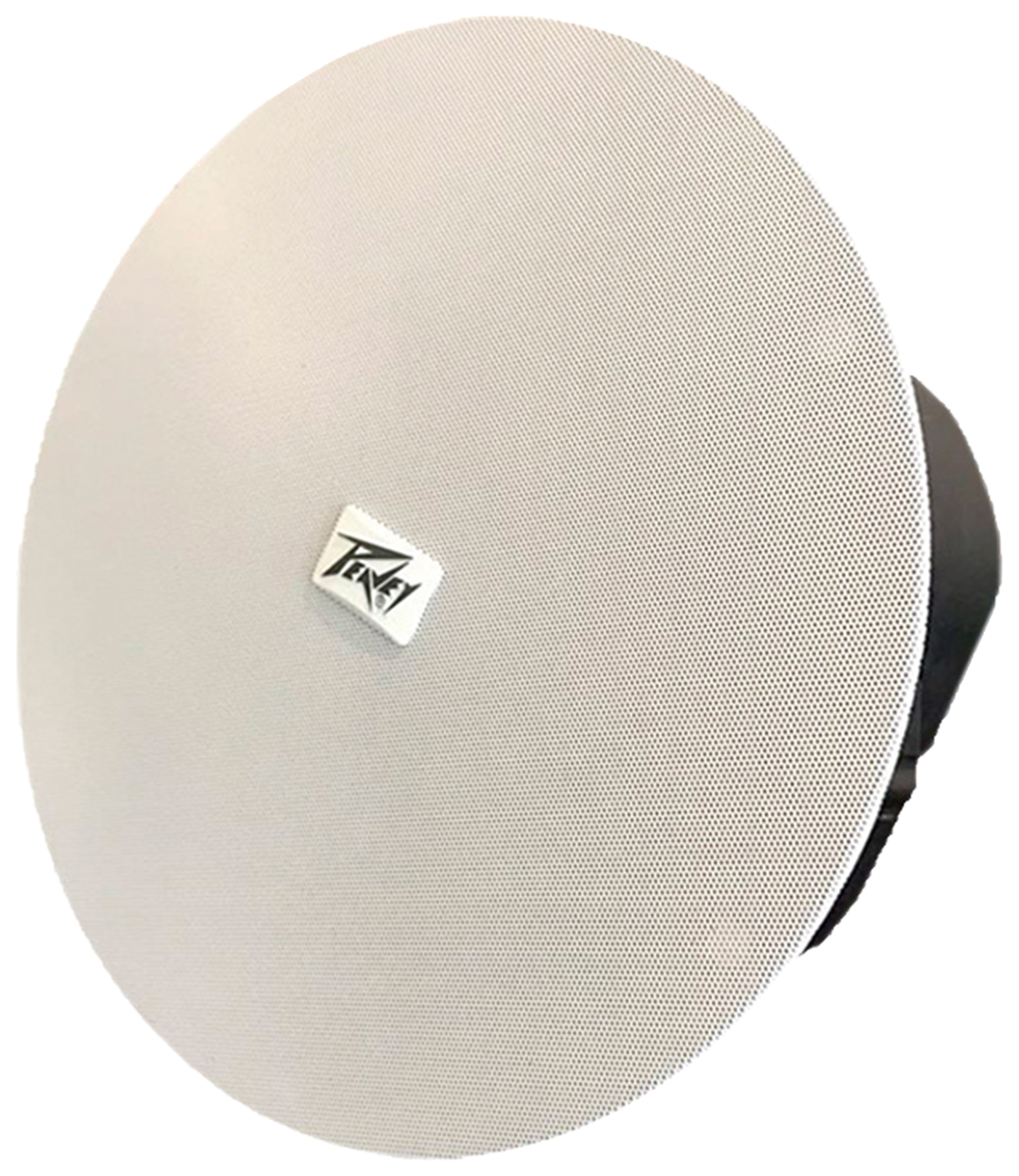

Peavey PHR 860 II

Designed to provide high performance in a very compact footprint, the Peavey® PHR II series ceiling speakers appeal to both system designers and architects. PHR II ceiling speakers are ideal for high-intelligibility voice, music and signal reproduction in commercial, industrial and institutional applications. A tap selector switch allows for easy system tuning and configuration for 70 or 100V distributed systems. A full selection of taps up to 50 Watts (model dependent) and an 8 Ohms transformer bypass setting are included for maximum system versatility.

Features PHR 860 II

• Frequency Response: 75 Hz to 20 kHz, - 10 dB
• Power Handling: 90 Watts
• Nominal Impedance: 8 Ω
• Sensitivity: 88 dB ±3dB ,1m,1W
• Advanced crossover network
• Combined 70/100V and low impedance operation
• Transformer Taps 25W, 12.5W, 6.25W, 3.1W, 1.5W @ 70V
• Transformer Taps 50W, 25W, 12.5W, 6.25W, 3.1W @ 100V
• 8′′ Woofer, PP cone and rubber surround
• 1′′ Soft dome tweeter with Titanium membrane
• Tweeter can be aimed towards listening area
• Crossover Frequency: 4 kHz
• Recommended filter type and point: 24 dB/oct. Linkwitz-Riley at 80 Hz
• Outside Dimensions (Diameter x Depth): 10.83′′ (275 mm) x 8.74′′ (222 mm)
• Cutout Diameter: 9.57′′ (243 mm)
• Connectors: 4-pin screw terminal
• Magnetic front grille
• Logo can rotate 360°
• Steel backcan
• Available in White

Technical Specifications

• Speaker Configuration: Ceiling Speaker 2-way
• Speaker Type: Non-Powered
• Power RMS: 12.5 , 25 , 6.25 , 90 W @ 8 Ω - Selectable taps - 50 , or 3.1 W @ 70/100V
• Nominal Impedance: 8 Ω
• Sensitivity (1W/1m): 90 dB
• Speaker Frequency Response: 70 Hz - 13.2 kHz (-10 dB)
• HF Driver: 0.875" Soft Dome Tweeter
• LF Driver: 8" Woofer
• Enclosure Material: Steel Back Can
• Net Weight: 7.0 lbs (3.17 kg)
• Product Width: max. Ø 10.83" (275 mm)
• Product Depth: 8.74" (222 mm)
• SKU: 04001550
