Peavey PVX 15

The PVX 15 passive loudspeakers deliver superior sound quality by utilizing advanced materials like its lightweight, roadworthy molded polypropylene exterior. Lightweight, durable and voiced for live music or speech applications, these two-way speaker systems will handle 400 Watts program and 800 Watts peak power and feature heavy-duty woofers, 2-3/8′′ voice coils and the Peavey RX14 1.4′′ titanium diaphragm compression driver coupled to a constant directivity horn.

Features PVX 15

• Power Handling: 400 Watts program / 800 Watts peak
• Top, bottom and right side flying point inserts
• Full-coverage heavy-duty perforated steel grille, with powder-coat finish
• Rugged construction
• Patented, asymmetrical Quadratic Throat
• Waveguide Technology - 100° x 50° coverage
• 15° upward and 35° downward directing sound to your audience
• 15′′ heavy-duty woofer, 2-3/8′′ voice coil
• RX14 titanium compression driver

Technical Specifications

• Speaker Configuration: Full Range 2-way
• Speaker Type: Non-Powered
• Power RMS: 200 W
• Power Program: 400 W
• Power Peak: 800 W
• Nominal Impedance: 8 Ω
• Sensitivity (1W/1m): 97 dB
• Maximum SPL: 126 dB
• Speaker Frequency Response: 57 Hz - 20 kHz (±3 dB)
• HF Driver: RX 14 - 1.4" Titanium Diaphragma Compression Driver
• LF Driver: 15" , VC 2 3/8" Woofer

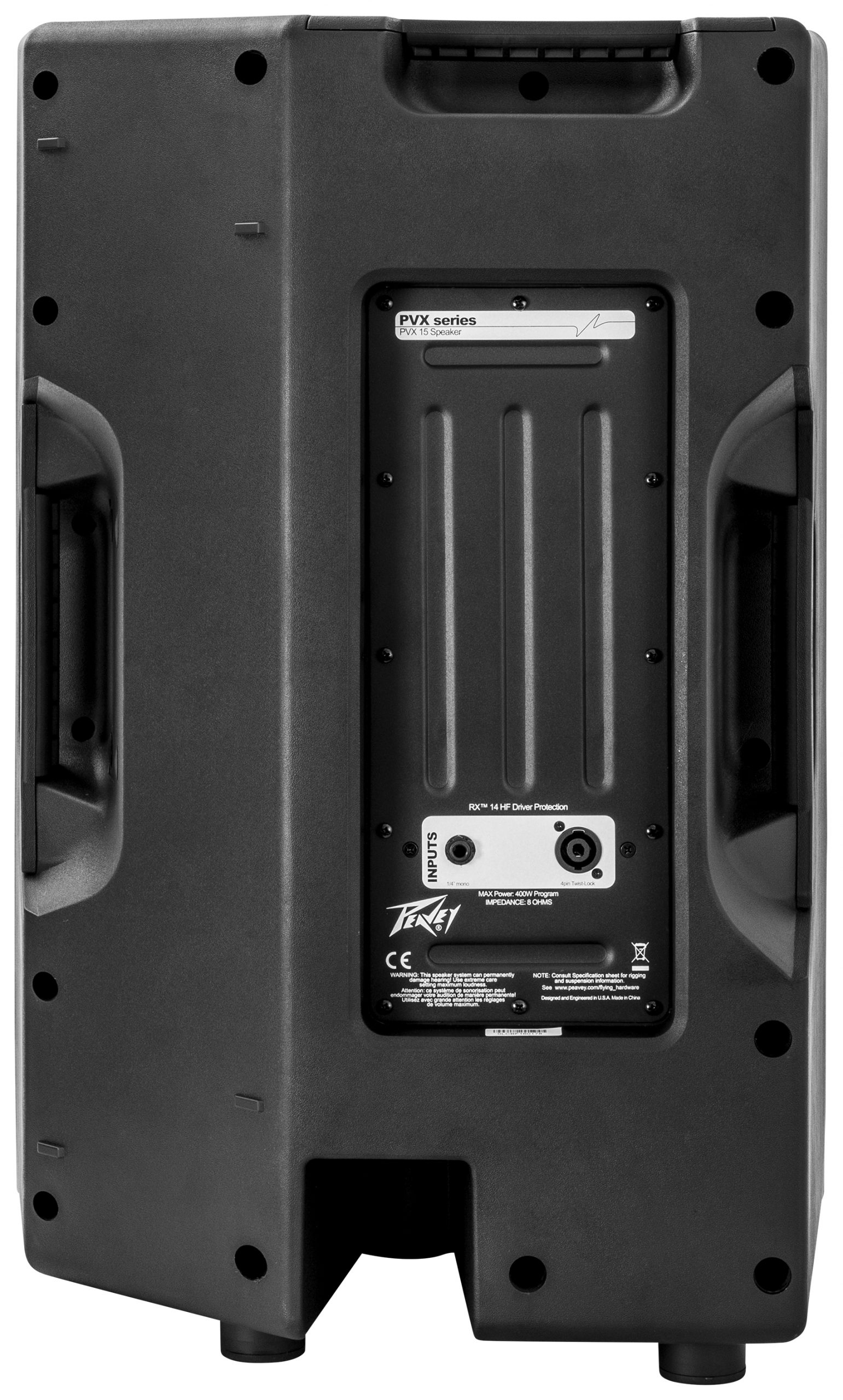

• Input Connectors: 1 x 4-pin Twist-Lock & 1 x 1/4" Jack
• Suspension Points: 4 x M10 & 3 x VersaMount 70+
• Pole Mount: Yes
• Enclosure Material: ABS
• Net Weight: 47.0 lbs (21.40 kg)
• Product Height: 28.25" 718 mm)
• Product Width: 18.90" (480 mm)
• Product Depth: 18.71" (475 mm)
• SKU: 03620390
