Peavey PVX 10
Peavey SKU 3620370
Peavey Commercial Audio
Peavey
MAP
$279.99
Overview
Product details
The PVX 10 is a two-way sound reinforcement system based on a heavy-duty 10′′ woofer and a RX 10N titanium diaphragm dynamic compression driver mounted on a 100° by 60° coverage Quadratic Throat Waveguide. Its sleek modern appearance coupled with excellent performance offer an outstanding package.
Features PVX 10
- Power Handling: 400 Watts program / 800 Watts peak
- Two-way sound reinforcement enclosure
- Crossover network for driver protection and EQ
- High frequency driver protection
- Durable plastic injection-molded trapezoidal enclosure
- Asymmetrical horn aims the sound down 10°, at the audience, not over their heads
- Full-coverage heavy-duty perforated steel grilles, with powder coat finish
- Pole mount molded-In
- Top and bottom flying point inserts
- Patented Quadratic Throat Waveguide technology, 100° x 60° coverage
- RX 10N compression driver, with 1′′ titanium diaphragm
- 10′′ heavy-duty woofer with 2 3/8′′ voice coil & 50 oz. magnet
- Extra angled section on right side allows floor monitor use
Technical Specifications
- Speaker Configuration: Full Range 2-way
- Speaker Type: Non-Powered
- Power RMS: 200 W
- Power Program: 400 W
- Power Peak: 800 W
- Nominal Impedance: 8 Ω
- Sensitivity (1W/1m): 93 dB
- Maximum SPL: 122 dB
- Speaker Frequency Response: 74 Hz - 18 kHz (±3 dB)
- HF Driver: RX 10N - 1" Titanium Diaphragma Compression Driver
- LF Driver: 10" , VC 2 3/8" Woofer

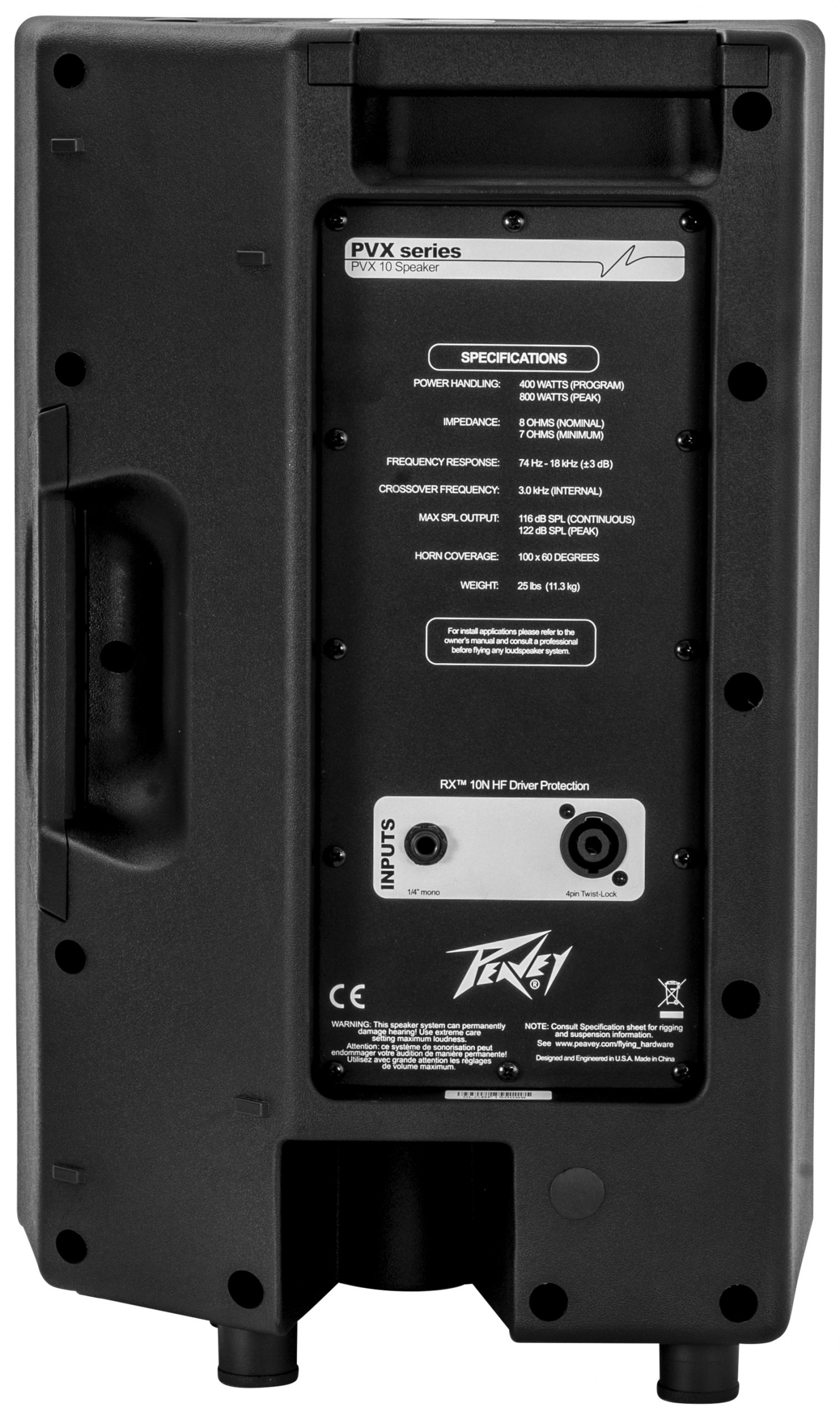

- Input Connectors: 1 x 4-pin Twist-Lock & 1 x 1/4" Jack

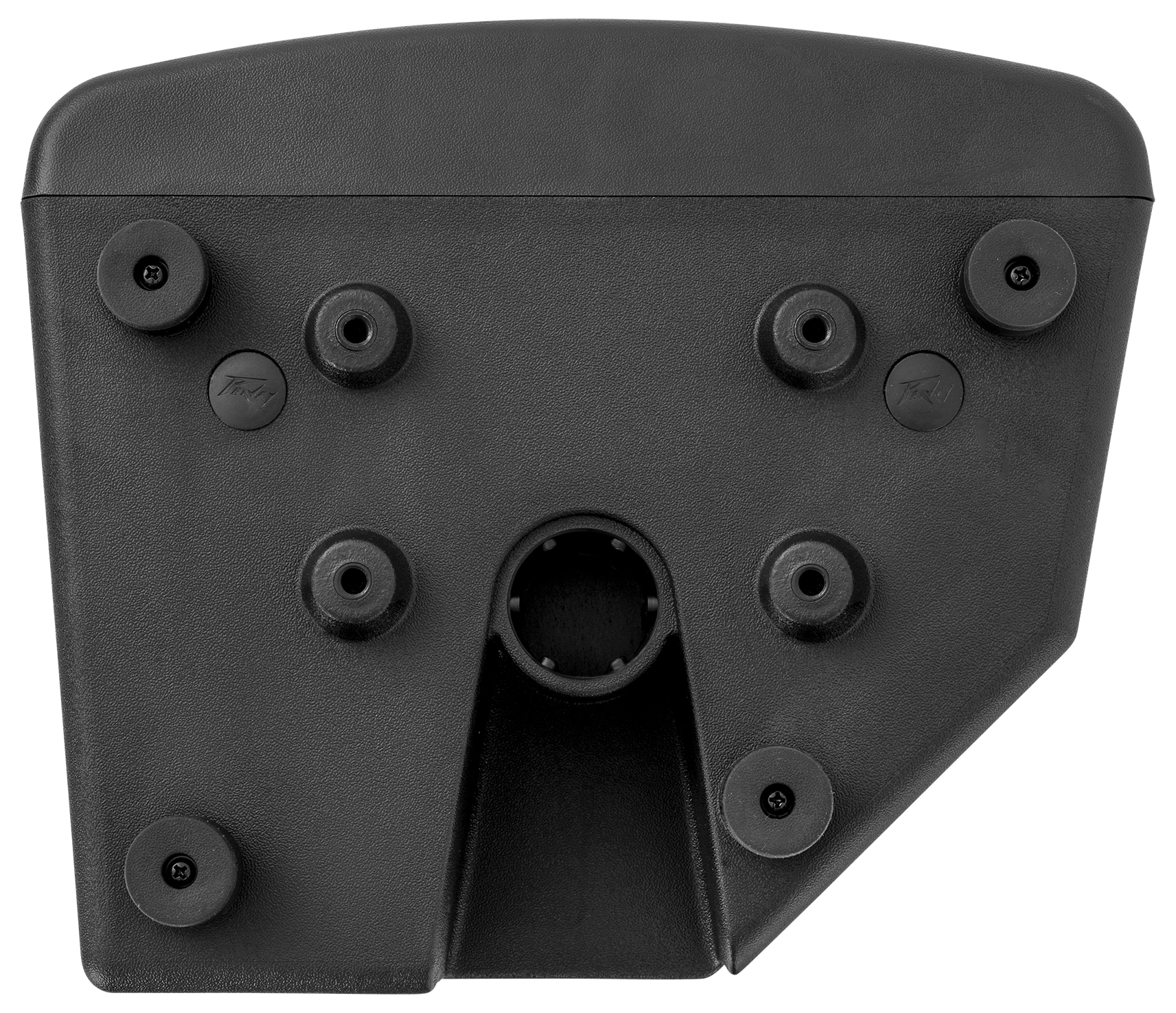

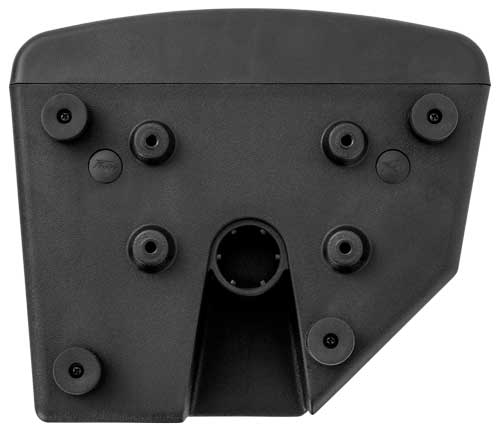

- Suspension Points: 4 x M10 & 2 x VersaMount 70+
- Pole Mount: Yes
- Enclosure Material: ABS
- Net Weight: 25.0 lbs (11.30 kg)
- Product Height: 20.00" (508 mm)
- Product Width: 12.69" (322 mm)
- Product Depth: 11.06" (281 mm)
- SKU: 03620370
Additional info
Specs and reference
SKU3620370
Weight25.00 lb
Length11.06 in
Width12.69 in
Height20.00 in
